MarSurf CL select

Art. no. 6350019

Super-fast optical profilometry for QA and production

Optical 3D profilometers with which you can measure and analyze surfaces – contactlessly, independent of material, and very fast..

MarSurf CL <i>select</i>
MarSurf CL <i>select</i>
Flexible solution for quality control and production

The MarSurf CL select stands out for extremely fast recording of large measuring surfaces while also ensuring high measuring precision.  Thanks to its modular design, the measuring system can be adjusted to various measuring tasks and individual automation, measuring convenience, and accuracy requirements.

Typical measuring tasks

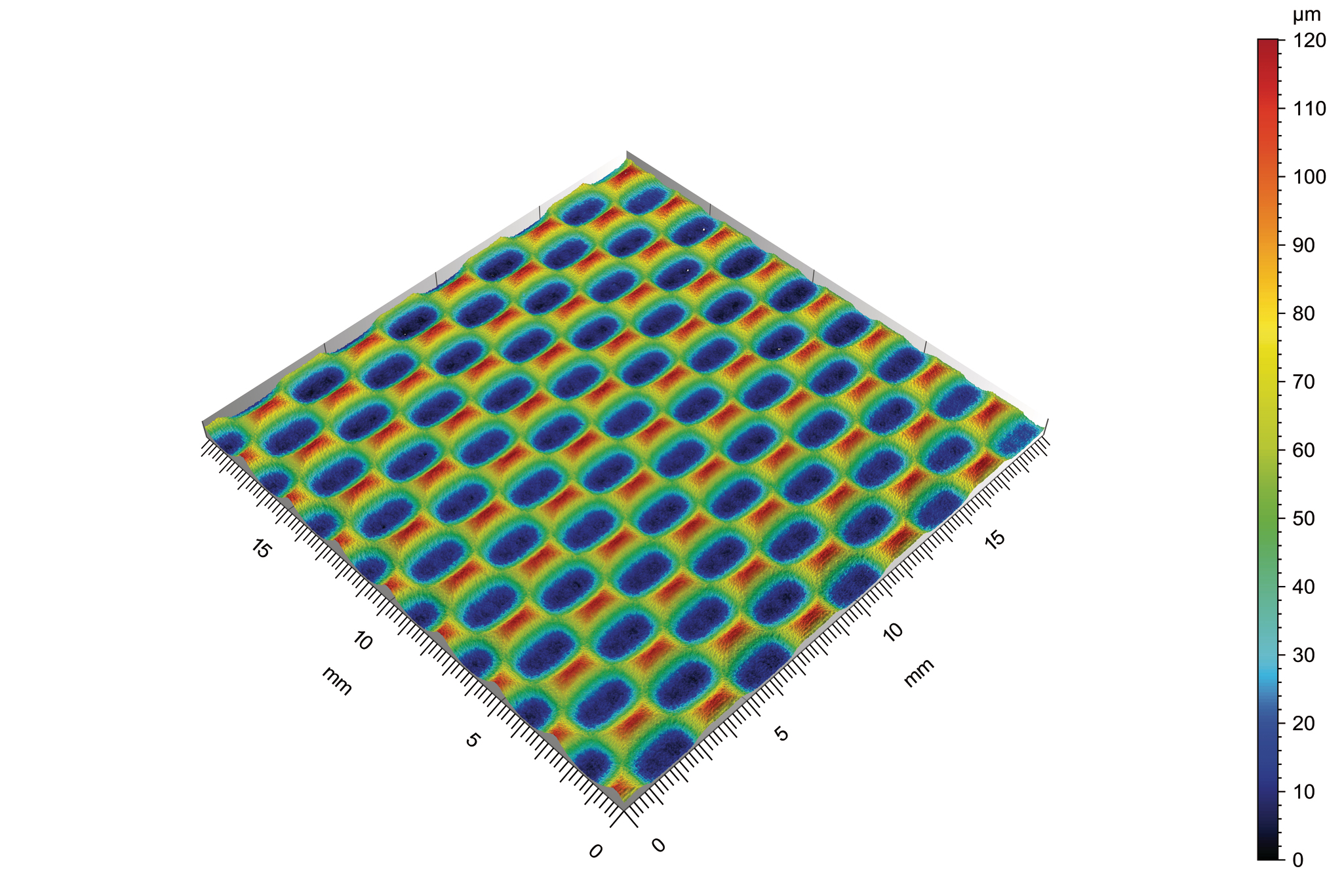

  • Topography measurements
    (including volume, wear, tribology)
  • Fault detection
  • Layer thickness measurement
  • Contour and form (2D, 3D)
  • Macro and micro geometries
  • Determination of flatness and coplanarity
  • ...
Maximum data quality

One of our most important criteria, which equates to excellent precision, accuracy, reproducibility and documentation to ensure traceability and auditability. Our greatest service for the customer is to provide a quantitative measuring value that can be implemented reliably in the engineering, product, process design and quality control areas etc.
MarSurf CL select | Art. no. 6350019
Measuring speed 2 kHz
Workpiece weight (max.) in kg 50 kg
Measuring principle Chromatically confocal
Languages German , English , French , Italian , Spanish , Portugese , Polish , Russian , Turkish , Chinese , Japanese , Korean
Power supplied 100 - 240 V
Surface parameters ISO 4287, ISO 13565, ISO 25178, …

Variety of applications for our products

Machine building
Qualification and quantification of the roughness, geometry, and wear volume

Electronic system and semiconductors
Component inspection right in to sub-micrometer range for fault-free products

Medical technology
Quality assurance of medical surfaces in production and the laboratory

Materials science
Optimization of functional features on new surfaces and products

Micro-system technology
Measurement of complex surface geometries of the smallest components with nanometer precision
Short measuring times
High resolution measurements of large surfaces in the shortest time guarantee maximum cost-effectiveness without compromising on quality.
Large measuring range
Complete freedom of portal design and flexible component selection from a module building set.
Program processes individually
Fully automated, database-based pallet measurements with automated measuring and evaluation sequence (user-dependent one click solution).
