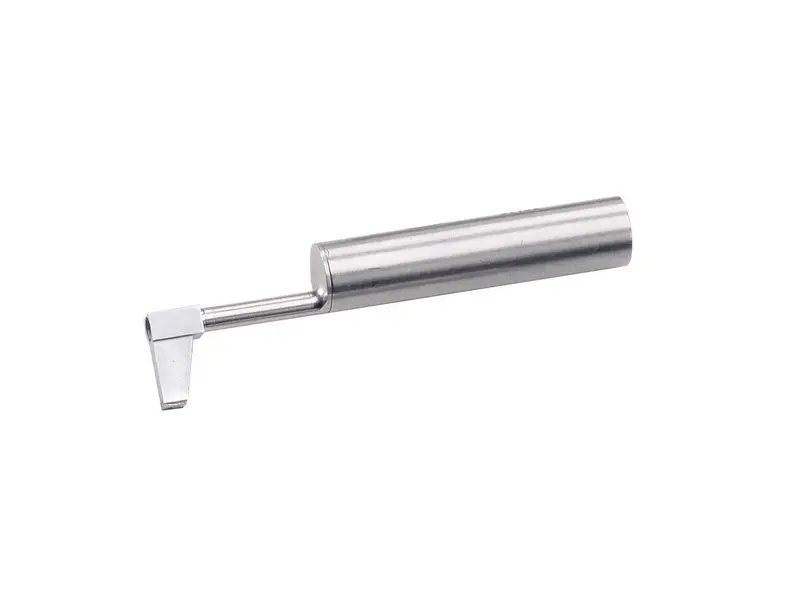

MarSurf PHT 11-100
Art. no. 6111524
Probe for grooves PHT 11-100
for plane surfaces, bores with a dia. larger
than 11 mm (.433") and a max. depth of
14 mm (.551"),
grooves with a width larger than 2.5 mm (.098")
| MarSurf PHT 11-100 | Art. no. 6111524 | |
|---|---|
| Weight (gross) | 0.03 KG |
|
|
Variety of applications for our products
MarSurf PHT 6-350/ 5µm
Standard probe 5 µm PHT 6-350/ 5µm for plane surfaces, bores with a dia. larger than 6 mm (.236") a...
MarSurf PHT 6-350/ 10µm
Standard probe 10 µm PHT 6-350/ 10µm for plane surfaces, bores with a dia. larger than 6 mm (.236")...
MarSurf PHT (80 mm)
PHT pick-up extension 80 mm PHT (80 mm) Pick-up extension (80 mm) for P-probes
MarSurf PHT 6-350
Standard probe 2 µm PHT 6-350 for plane surfaces, bores with a dia. larger than 6 mm (.236") and a ...
MarSurf PHTF 0.5-100
Probe for gear tooth flanks PHTF 0.5-100 e.g. for gear tooth flanks with a modulus larger than 0.8
MarSurf PHT AQ
Adapter for transverse tracing PHT AQ Adapter for transverse tracing for P-probes. For hand-held tr...
MarSurf PHT 3-350
Probe for bores with a dia. larger than 3 mm PHT 3-350 for bores with a dia. larger than 3 mm (.118...
MarSurf
PFK/PFF steel probe protection
MarSurf PT 150
Probe for metal sheets PT 150 for measurements on metal sheets and roller surfaces according to DIN...
MarSurf PHTR-100
Probe for concave and convex surfaces PHTR-100 for measurements on concave and convex surfaces
