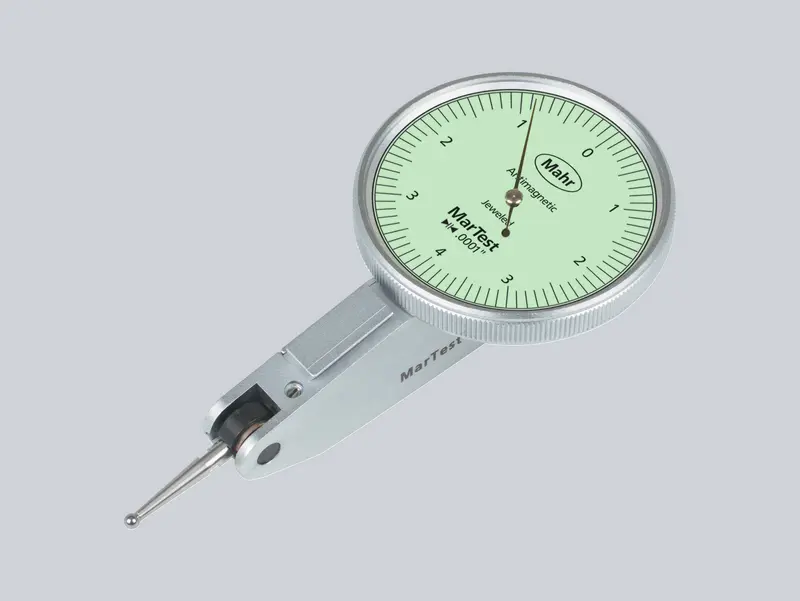

MarTest 801 SGM
Art. no. 4308970
- High contrast dial face, sealed with an O-Ring
- Mineral glass viewing panel for best protection:
- against scratching or damage caused by hot shavings
- optimal resistance to solvents - Matt chrome-plated protective casing with three integrated dovetail guide rails
- Shockproof measuring mechanism
- Anti-magnetic model
- Automatic adjustment to the contacting direction ensuring infallible readings
- Ball-bearing mounted double lever
- Overload protection thanks to friction clutch
| Product type | 801 SGM |
| Measuring range inches | ± .004" |
| Pointer rotation (inches) | .008" |
| Deviation range fe (inches) | .00012" |
| Total deviation range fges (inches) | .00016" |
| Partial measuring range ft (inches) | .00008" |
| Measuring value hysteresis fu (inches) | .00008" |
| Repeatability fw (inches) | .0001" |
| Measuring force | 0.15 N |
| Figur on dial face | 4-0-4 |
| Dial color | Green |
| Scale diameter (inches) | 1.5" |

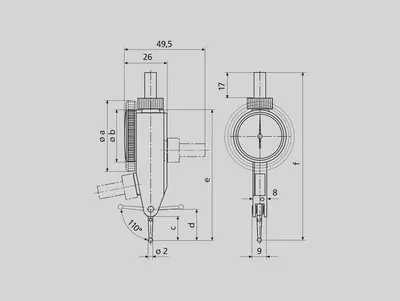

| Dimensions | a 40.5 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm |
|
|
Variety of applications for our products
- Measurement of concentricity, alignment, parallelism and flatness
- Centering of bores and shafts
- Parallel or perpendicular alignment of work pieces

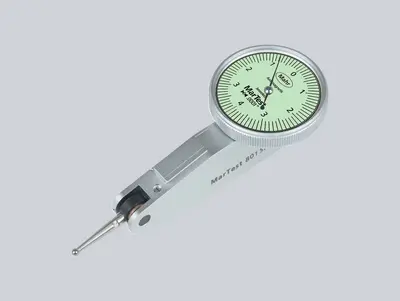

MarTest 801 SM
Test indicator MarTest 801 SM Factory standard Measuring range: ± .004" Graduation value inch: .0...

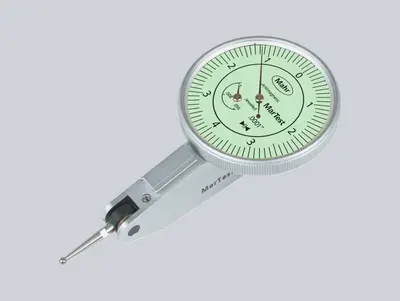

MarTest 801 SRM
Test indicator MarTest 801 SRM Factory standard Measuring range: ± .008" Graduation value inch: ....
MarTest 801 SGE
Test indicator MarTest 801 SGE Factory standard Measuring range: ± .004" Graduation value inch: ....
MarTest 801 SGM
Test indicator MarTest 801 SGM Factory standard Measuring range: ± .004" Graduation value inch: ....
