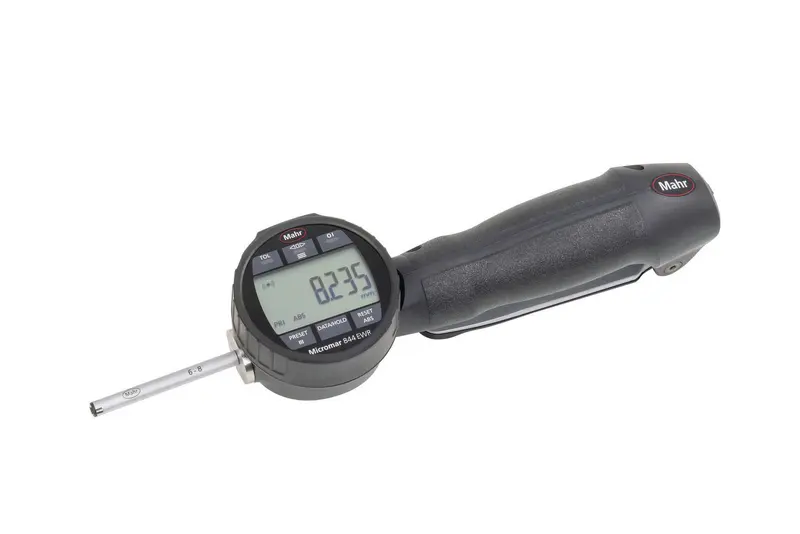

Micromar 844 EWRi
Art. no. 4192307
Digital 3-point inside measuring instrument Micromar 844 EWRi
Factory standard
Measuring range mm: 10 - 12mm
Package contains: Basic unit 844 EWRi-g, measuring head 44 Ak, instruction manual, battery, Hexagonal wrench, case
| Micromar 844 EWRi | Art. no. 4192307 | |
|---|---|
| Measuring range mm | 10 - 12 mm |
| Measuring range | .4 - .4725" |
| Resolution mm/inch | 0.001 / .00005" |
| Error limit µm | 4 µm |
| Notes error limit |
|
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 1.8 mm | b 4.3 mm | c 1.5 mm | d 58 mm | |
|
|
Variety of applications for our products
- through holes
- blind holes
| Label | Art. no. | Diameter in mm | Standard | |
|---|---|---|---|---|
|
Wireless receiver for measuring instruments with integrated wireless i-Stick |
4102220 | ||
|
Setting ring 355 E |
4710030 | 10 mm | DIN 2250 C |
