MarCal 18 EWR
Art. no. 4112707

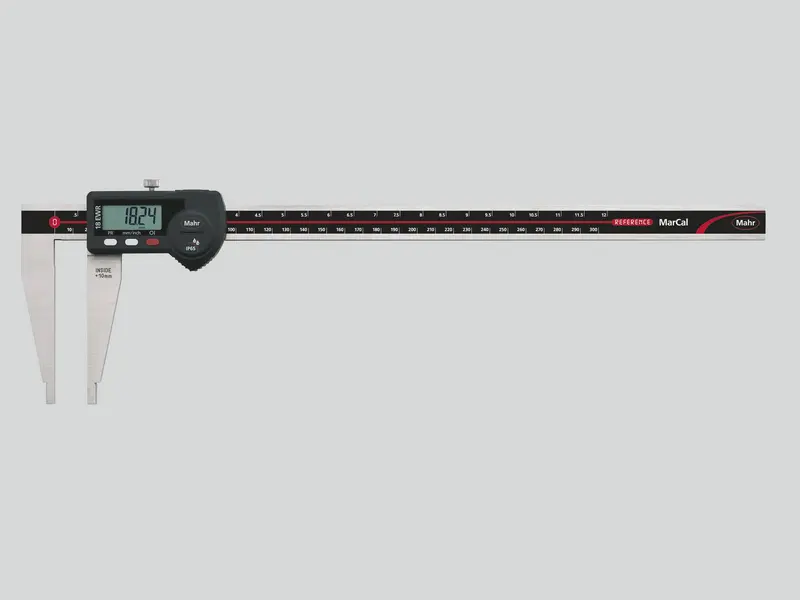

Digital workshop caliper MarCal 18 EWR
Measuring range mm: 0 - 800 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 65
Package contains: battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Rounded measuring blades for inside measurements
- Slide and beam made of hardened stainless steel
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
| MarCal 18 EWR | Art. no. 4112707 | |
|---|---|
| Measuring range mm | 0 - 800 |
| Measuring range | 0 - 32" |
| Resolution mm/inch | 0.01 / .0005" |
| Error limit (mm) | 0.05 mm |
| Error limit inches | .002" |
| Standard | Factory standard |
| Battery type | CR 2032 (3V Lithium) |
| Dimensions | a 995 mm | b 150 mm | c 20 mm | d 20 mm | e 30 mm | f 60 mm | |
| Label | Art. no. | |
|---|---|---|
|
Data connection cable USB 16 EXu |
4102357 |
|
Data cable Digimatic 16 EWd |
4102915 |
|
Data connection cable RS232C 16 EXr |
4102410 |
