Millimar µDimensionair®II
Art. no. 2103200

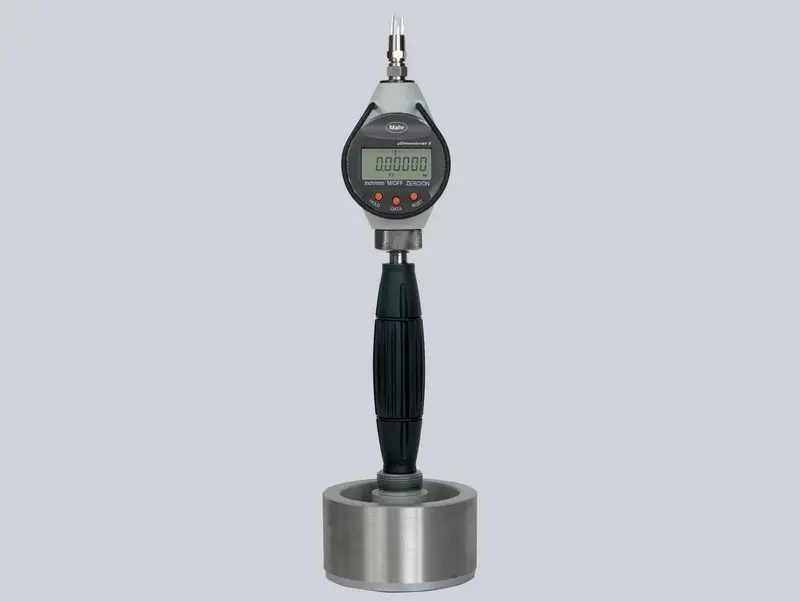

Mobile pneumatic length measuring instrument Millimar µDimensionair®II
Compatibility: Federal
Magnification: 5000:1, 2500:1, 1260:1
Inputs for pneumatic measuring equipment: 1
Data interface: Digimatic, Opto RS-232C, USB, wireless
Energy supply: Battery operation, approx. 3000 h
Package contains: instruction manual, supply hose AHO-2
- Value for money
- Versatile
- Innovative
- Robust
- No other pneumatic measuring system is as versatile as the ?Dimensionair, which can be used as a hand-held device, a stationary table-top device or even directly on the machine tool. With its IP54 protection rating it is suitable for use in harsh workshop environments. The compressed air flowing out of the measuring equipment removes any contaminations from the testpiece to ensure reliable measuring results.
- Directly and clearly readable measuring results.
- With its fixed ratio and controlled compressed air supply, this sturdy, reliable measuring instrument is ideal for use in manufacturing environments.
- The ?Dimensionair II offers:
- Choice of setup with one standard or with Min/Max standards
- All other functions of the ?Max?m II digital dial comparator:
- Dynamic measurement: Min, Max, measuring span
- Multiplication factor and hold function ("freeze")
- Choice of data transfer with serial number
- MarConnect data output: USB, Opto RS-232C, and Digimatic
| Millimar µDimensionair®II | Art. no. 2103200 | |
|---|---|
| Product type | µDimensionair®II |
| Energy supply | Battery operation, approx. 3000 h |
| Graduation mm | 0,5 , 1 , 2 |
| Graduation value inches | .00002'' , .00005" , .0001'' |
| Display | Analog display with one line digital display |
| Digital display | Rotates through 270° |
| Tolerance display | Two - over / under (3 class) |
| Compatibility | Federal |
| Features | 1 |
| Programs | 1 |
| Test steps | 1 |
| Dynamic functions | MAX, MIN, MAX-MIN |
| Statistical functions | Deviation, mean value |
| Error limit | ± 1% of the total range |
| Data interface | Digimatic , Opto RS-232C , USB , wireless |
| Hardware interfaces | Extramess-Interface |
| IP protection category | IP 54 |
| Operating temperature from | 5 °C |
| Operating temperature up to | 35 °C |
| Product weight | 0.2 kg |
