Clever measuring devices, excellent results
A length gage is only as good as the fixture in which it is installed. The entire measuring circuit ultimately determines how accurate, reliable and reproducible measuring results are achieved. For this purpose, our engineering team designs manual devices individually for the respective requirement and suitable for the respective need; from semi-automatic to fully automatic measuring stations. The basis for this is the proven sensor technology of the Mahr Millimar family in combination with our decades of experience in fixture construction.
Dimensional solutions from Mahr Engineered Solutions

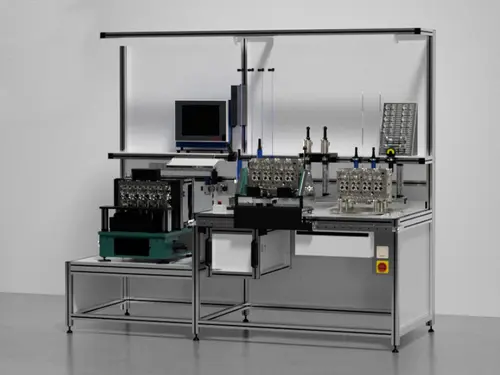

Manual loading & measurement
- Measure directly in production
- Simplest handling
- Measuring result is available within a few seconds
- Reliable and safe measurement by workshop personnel

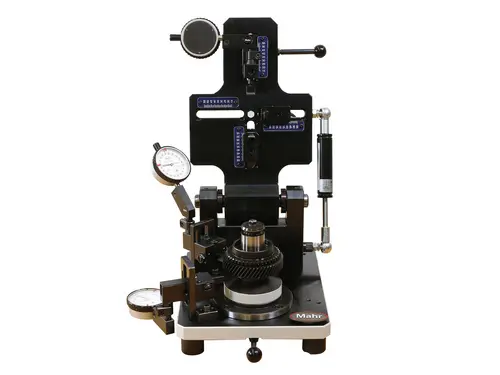

Manual loading & fully automatic measurement
- Dynamic measurements
- Complex measuring tasks
- Increased efficiency through automation of measuring sequences

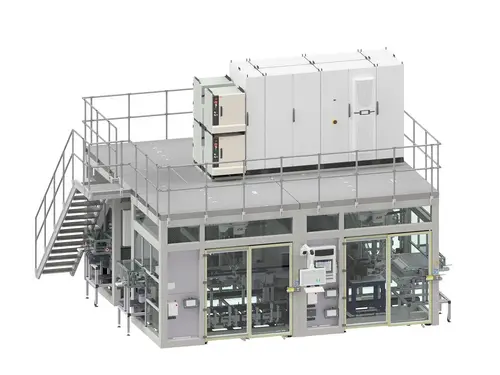

Fully automatic inline measurement
- Measuring cell for integration in the production line
- Automatic workpiece recognition and measuring program selection
- Workpiece feeding and alignment
- Workpiece classification
- Laser marking of the workpiece

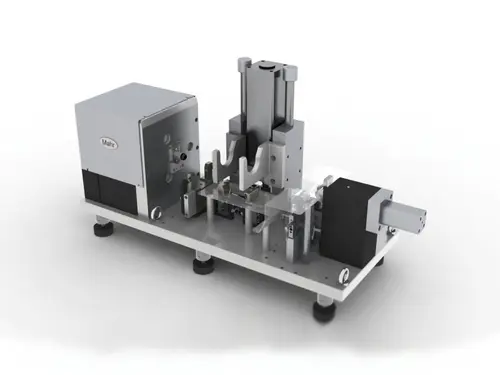

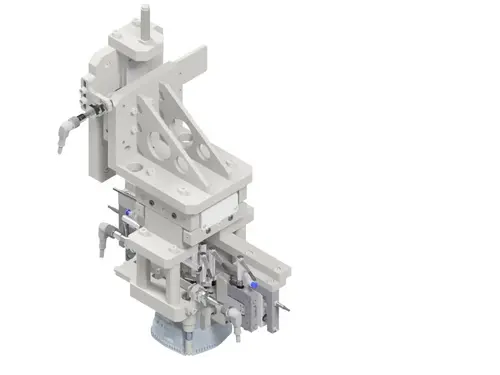

Measuring modules for inline integration
- Integration of measuring heads in production and assembly lines
- Cooperation with integrators according to customer requirements
- Simple connection and integration
- High-precision metrology from the expert as part of a complete system
Turnkey solutions for different measuring tasks
- Complete SPC measuring stations with a wide variety of measuring equipment for handling all pending measuring tasks in a production process
- Complete metrological equipment for production lines and/or workshops
