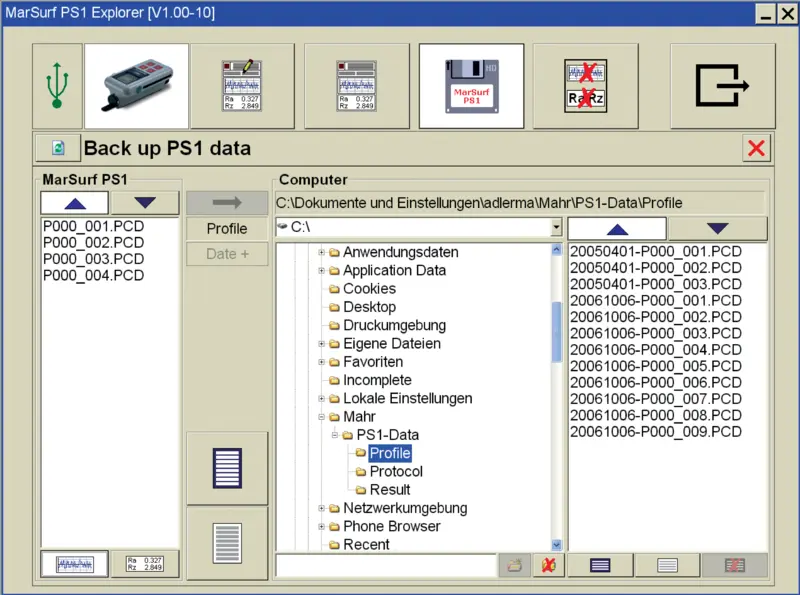

MarSurf SW PS1/M300 Explorer
Art. no. 6910205
PS1/M300/M300C-EXPLORER PC software for MarSurf PS1/M300/M300C. For documenting and recording results and the surface profile. (compatible from MarSurf PS1 software version V1.01-2)
- The software is designed to save and document your measuring results and profiles easily using "Drag & Drop"
- The saved data can be printed on an A4 sheet or in other formats.
- The measuring data can be displayed in different formats:
Profile and results, results, profile + material ratio curve + results, statistics, etc.
| MarSurf SW PS1/M300 Explorer | Art. no. 6910205 | |
|---|---|
| Weight (gross) | 0.15 KG |
