Millimar P 1512 V
Art. no. 5315081

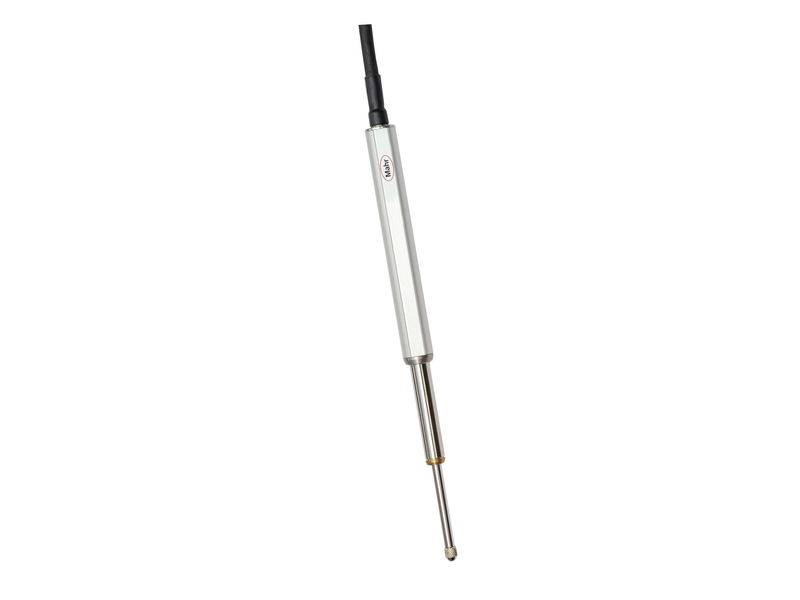

Incremental Probe Millimar P 1512 V
Output signal 1 Vpp
Measuring range: 12 mm
Package contains: instruction manual, test certificate
- Maximum measuring accuracy for long measuring length
| Label | Art. no. | Product type | Range of digital display µm | Range of analog display µm | Resolution µm | Graduation mm | Graduation value inches | Display | Refresh rate | Probe inputs | Compatibility | Measuring combination | Features | Test steps | Dynamic functions | Configuration | Data transmission rate | Error limit, digital display | Error limit, analog display | Data interface | Hardware interfaces | Control inputs | Control outputs | Energy supply | IP protection category | Working temperature MIN | Working temperature MAX | Operating temperature from | Operating temperature up to | Range of digital display inch | Range of analog display inches | Current consumption | Product weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Compact amplifier C 1202 Metric/Inch version |
5312025 | C 1202 Metric/Inch version | ± 999 999.9 | ± 5000 , ± 2000 , ± 1000 , ± 300 , ± 100 , ± 30 , ± 10 , ± 3 | 0,01 , 0,1 , 1 | 500 , 200 , 100 , 20 , 10 , 2 , 1 , 0,2 | .019" , .007" , .002" , .001" , .0002'' , .0001'' , .00002'' , .00001'' | TFT color display, 110 mm (4.3"), 480 x 272 pixels | 30 fps | 2 über N 1700 Module | Millimar N 1700 | +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B | 3 | 1 | Max, Min, TIR (Max-Min), (Max+Min)/2, Average | Keyboard | 30 Hz |
0.3% (min. 0.2 μm); 0.3% (min. 0.04 μm)* * (with N 1702 M-HR) |
0.25% of the end scale value / 0.3% of the displayed value | USB , Digimatic | USB , Digimatic , Control input , RS-485 , Micro SD slot for SD / SDHC cards up to 32 GB |
Control input programmable
(functions and function sequences) |
4 Steuerausgänge über N 1704 I/O | Power source , 230 V/115 V; 50/60 Hz | IP 42 | 10 °C | 35 °C | 0 °C | 40 °C | ± 39" | ± .19" , ± .07" , ± .03'' , ± .01'' , ± .003'' , ± .001'' , ± .0004" , ± .0001'' | ||
|
Module for incremental sensors N 1702 VPP |
5331161 | N 1702 VPP | 0,01 , 0,1 | 2 | Incremental 1 Vss | Millimar C 1202 as of FW version 1.1.0.0 | 4189 Hz | RS-485 | + 5V from N 1700 Bus | IP 42 | 10 °C | 30 °C | 0 °C | 40 °C | 350 mA | 0.2 kg |
