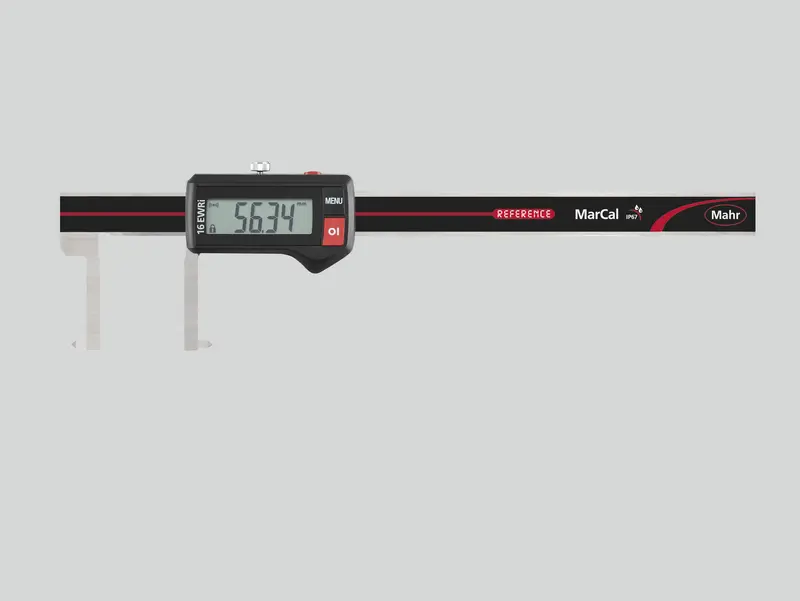

MarCal 16 EWRi-SI
Art. no. 4103378
Digital special calipers MarCal 16 EWRi-SI
Measuring range mm: 20 - 170 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: Integrated Wireless
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Lapped guideway
- Slide and beam made of hardened stainless steel
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
| MarCal 16 EWRi-SI | Art. no. 4103378 | |
|---|---|
| Measuring range mm | 20 - 170 |
| Measuring range | 0.8 - 6.7" |
| Resolution mm/inch | 0.01 / .0005" |
| Error limit (mm) | 0.03 mm |
| Error limit inches | .001" |
| Standard | Factory standard |
| Battery type | CR 2032 (3V Lithium) |
| Depth rod | none |
| Dimensions | b 28 mm | d 235 mm | e 16 mm | |
|
|
