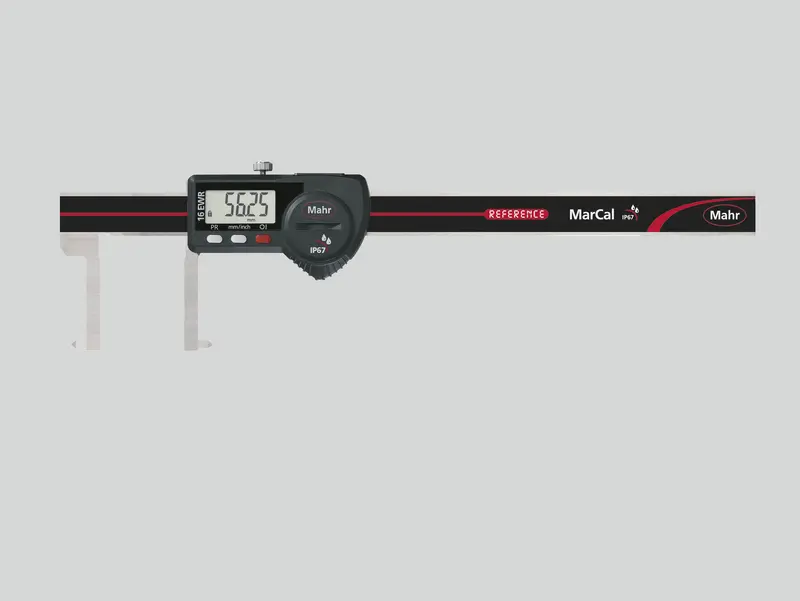

MarCal 16 EWR-SI
Art. no. 4103078
- High contrast digit display
- Locking screw above
- Lapped guideway
- Slide and beam made of hardened stainless steel
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide

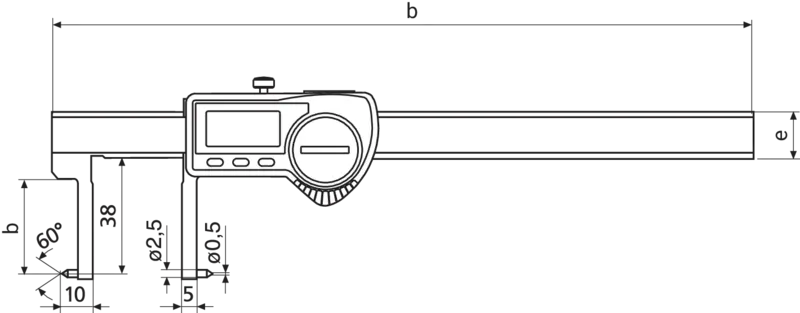

| MarCal 16 EWR-SI | Art. no. 4103078 | |
|---|---|
| Measuring range mm | 20 - 170 mm |
| Measuring range | 0.8 - 6.7" |
| Resolution mm/inch | 0.01 / .0005" |
| Error limit (mm) | 0.03 mm |
| Error limit inches | .001" |
| Standard | Factory standard |
| Battery type | CR 2032 (3V Lithium) |
| Depth rod | none |
| Dimensions | b 28 mm | d 235 mm | e 16 mm | |
|
|
Variety of applications for our products
| Label | Art. no. | |
|---|---|---|
|
Data connection cable USB 16 EXu |
4102357 |
|
Data connection cable RS232C 16 EXr |
4102410 |
