MarCal | Digital special calipers

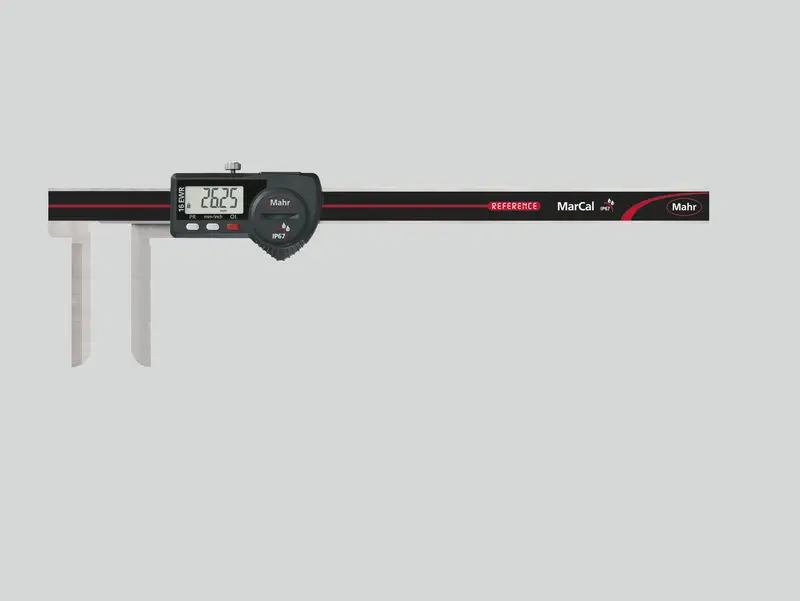

MarCal 16 EWR-LI

Art. no. 4103085

Digital special calipers MarCal 16 EWR-LI
Measuring range mm: 10 - 200 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case

MarCal 16 EWR-LI
  • High contrast digit display
  • Locking screw above
  • Lapped guideway
  • Measuring blade for inside measurements
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
MarCal 16 EWR-LI | Art. no. 4103085
Measuring range mm 10 - 200 mm
Measuring range inch 0.4 - 8"
Resolution mm/inch 0.01 / .0005"
Error limit (mm) 0.05 mm
Error limit inches .002"
Standard Factory standard
Battery type CR 2032 (3V Lithium)
Depth rod none
Dimensions b 60 mm | d 285 mm | e 16 mm |
Dimensional drawing 1

Variety of applications for our products

With long inner blades
Label Art. no. Product type For measuring instrument Data interface Hardware interfaces Cable length
4102357 Data connection cable USB
16 EXu
4102357 16 EXu MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi
MarSurf PS1, PS10, M300, M300C, PocketSurf IV
USB USB , Simplex , EX-Interface 2 m
4102915 Interface adapter with data cable Digimatic
16 EWd
4102915 16 EWd MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi
MarSurf PS1, M300, M300C
Digimatic 2 m
4102410 Data connection cable RS232C
16 EXr
4102410 16 EXr MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi
MarSurf PS1, PS10, M300, M300C, PocketSurf IV
Opto RS-232C Opto RS-232C , Simplex , EX-Interface 2 m
