Measuring Small Bores

| George Schuetz

Over the years we have looked at using air gaging and back pressure to measure small bores, generally under 1 mm/0.040”.

Air gaging can be an acceptable way of doing this, but it does not provide any form information; it only provides the flow area as related to the diameter. However, because these holes are so small there may not be another economical solution.

But increase the size and there is a whole family of bore gages available to measure from 1 mm to 20 mm. In other words, a whole family of bore gages for these small bores. These precision mechanical bore gages use comparison to determine size and shape deviations of bores. Unlike fixed plug gages that employ a ground cylinder and sensitive contact to compare a bore to a master, these small comparative gages basically take the mechanical transfer out of the plug and use it as a standalone probe to measure small bores. Since there is no centralizing plug, the small-bore probe is rocked through the bore being measured to capture the smallest value related to the diameter of the bore, very much in the same manner as the tried and true adjustable bore gage.

The big difference is that this type of probe bore gage can measure bores a lot smaller than the normal adjustable bore gage (maybe I should have said the small difference). The adjustable bore gage is just as it is described; adjustable to cover a large range of parts, but with a very limited measuring range. For example, a small-bore probe with a nominal size of 1 mm will measure a bore from 0.95 to 1.15 mm; a nominal 10 mm probe can measure 9.4-10.6 mm; and a nominal 20 mm probe can measure 19.4-20.6 mm bores. Though limited in range, these bore probes have repeatability better than 1 um and will be accurate to 1% of the measuring range.

So, what is really happening with these small-bore probes?  As noted, they operate very similarly to fixed plug gages. There are two sensitive contacts held with flexures. As the contacts change with bore diameter, they transfer the size via a tapered pin to the indicating device. The indicators can be a dial, digital indicator, or comparator or even an LVDT probe and amplifier.

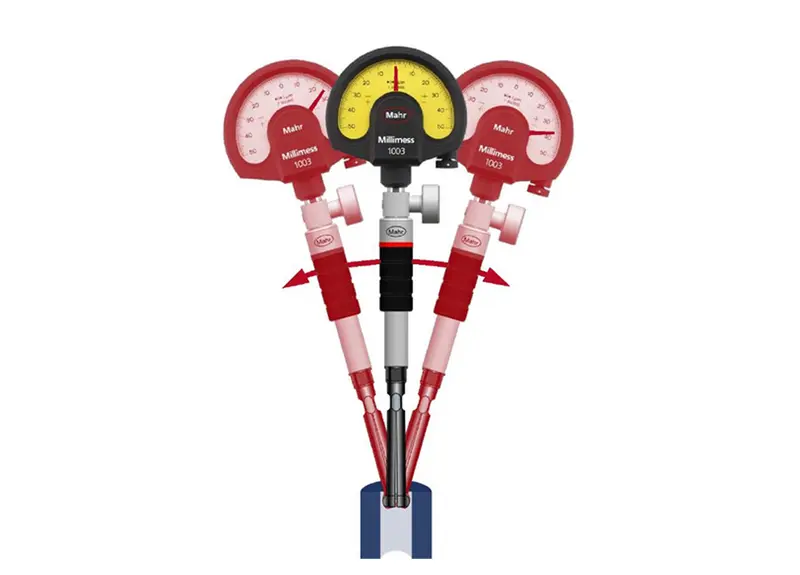

As with any comparative gage, these small probe gages require a setting master. The user of these bore probes will place the master on the bore probe and rock the bore plug in a side-to-side manner, observing the indicator readout and watching for the reversal point, or the smallest value. The user will then set this point to zero or the nominal size. Once set, the gage is taken to the bore to be measured and the same rocking process is used to find the diameter. With today’s digital indicators, this process can be easier since many digital indicators have dynamic memories that can latch upon the minimum value, eliminating the need for the user to remember the reversal point.

These probes can be used in special stands that will orient the small-bore probe to the part and lower it into the bore. When used in this manner, the bore does not have to be rocked as the probe is square to the bore because it is self-centralizing and will therefore provide the actual diameter deviation.

Like fixed plug gaging, the probes are available in through and blind hole configurations and with chromed contacts for normal wear conditions, or a diamond-like coating for extreme wear applications.

Small probe gages are often the only means of precisely measuring bores from 1 to 5 mm. In the hands of an experienced user, they can provide the results needed for tight tolerance bore measuring applications.
