MarCator 1086 WR
Art. no. 4337741

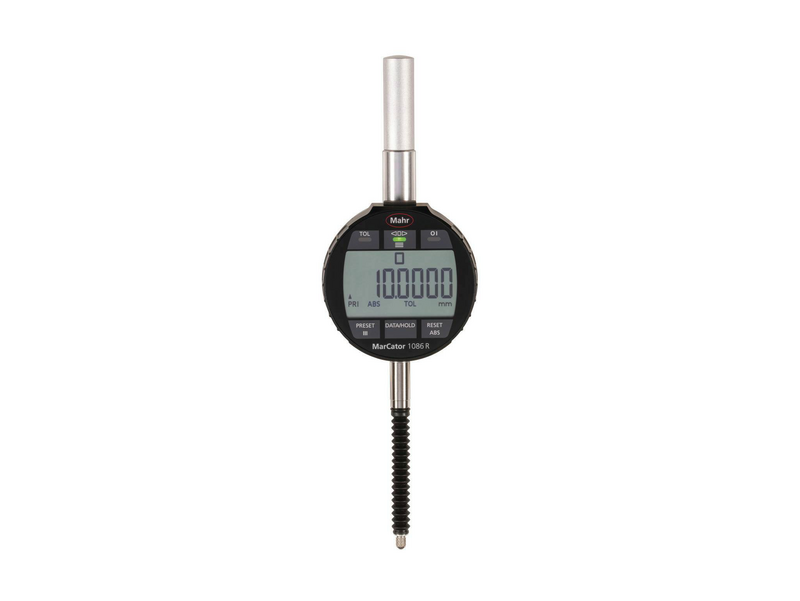

Digital indicator MarCator 1086 WR
IP protection category: IP 64
Data interface: USB, Digimatic
Factory standard
Measuring span in mm: 25mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
| Product type | 1086 WR |
| Measuring span in mm | 25 mm |
| Measuring span (inches) | 1" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 1 - 2.25 |
| Height of digits | 11.5 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 191.9 mm | b 21.3 mm | c 50 mm | |
|
|
Variety of applications for our products
Ideal for use in particularly challenging environments where the dial gage is highly contaminated or exposed to splash water
Comprehensive measuring functions for Static measurements such as lengths, distances and length differences
