Multimar | Digital universal calipers

Multimar 25 EWR

Art. no. 4119002

Digital universal calipers Multimar 25 EWR
Application range, outside: 0 - 1000
Resolution mm/inch: 0,01 / .0005"
Data interface: USB, Digimatic, Opto RS-232C, wireless
IP protection category: IP 65
Package contains: battery, instruction manual, mounting and resting blocks, wooden case, without arms/attachments and anvils

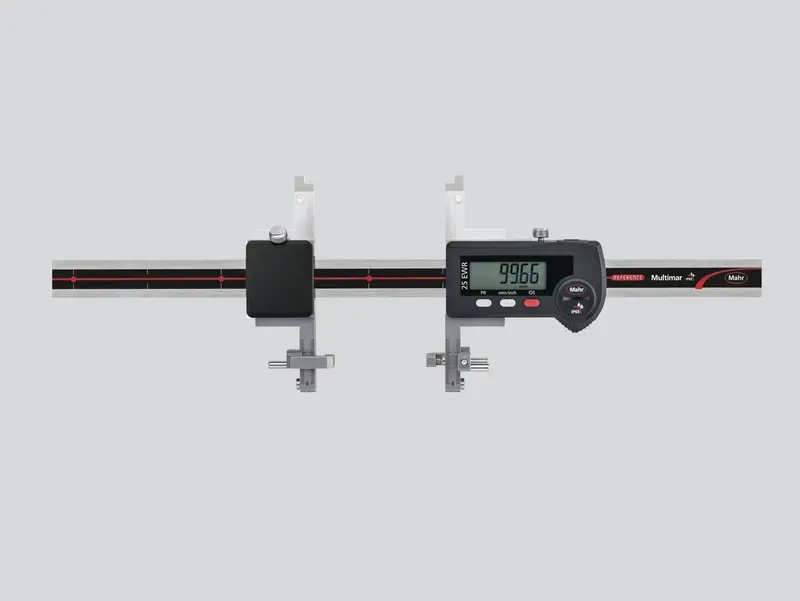

Multimar 25 EWR
  • Interchangeable measuring arms, anvils and stop elements (optional accessories) for easy adaptation to individual measuring tasks
  • Due to the patented mounting fixture of the measuring elements provided on the upper and lower longitudinal face of the arm holders, the digital display is always in the operator's line of vision
  • The application range can be extended by turning the measuring arms
  • The two arm holders can be moved along the rail, providing a well-balanced weight distribution even with small dimensions
  • Slide and rail are made of hardened stainless steel
Multimar 25 EWR | Art. no. 4119002
Battery type CR 2032 (3V Lithium)
Application range, outside 0 - 1000
Error limit (mm) 0.04 mm
Dimensions a 1200 mm |
Dimensional drawing 1

Variety of applications for our products

For measuring:
  • Outside and inside diameters
  • Centering shoulders
  • Narrow collars
  • External and internal tapers
  • Dovetails
  • Grooves
  • Distances between hole centers
Label Art. no. Product type For measuring instrument Data interface Cable length Hardware interfaces Frequency band Radio range Throat depth in mm Dimension D Dimensions d in mm
4102915 Interface adapter with data cable Digimatic
16 EWd
4102915 16 EWd MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi
MarSurf PS1, M300, M300C
Digimatic 2 m
4102410 Data connection cable RS232C
16 EXr
4102410 16 EXr MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi
MarSurf PS1, PS10, M300, M300C, PocketSurf IV
Opto RS-232C 2 m Opto RS-232C , Simplex , EX-Interface
4102357 Data connection cable USB
16 EXu
4102357 16 EXu MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi
MarSurf PS1, PS10, M300, M300C, PocketSurf IV
USB 2 m USB , Simplex , EX-Interface
4102231 Transmitter
16 EWe
4102231 16 EWe MarCal 16 ER, 16 EWR, 16 EWV, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 EWR (≤2017), 40 EWS, 40 EWV, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1087 R, 1087 BR
MarSurf PS1, PS10
EX-Interface EX-Interface 2400 MHz up to 6 m (20 ft)
4503030 Mounting attachments
844 Tma
4503030
4503031 Mounting attachments
844 Tmi
4503031
4503024 Measuring arms
844 Te
4503024 25 mm
4503025 Measuring arms
844 Te
4503025 35 mm
4503026 Measuring arms
844 Te
4503026 70 mm
4503027 Measuring arms
844 Te
4503027 100 mm
4503109 Depth stops for 844 Tma, 844 Tmi, 844 Te
844 Tw
4503109
4119010 Measuring tips for drill hole intervals
25 Eba
4119010 20 mm 1.5 mm
4119011 Measuring tips for drill hole intervals
25 Eba
4119011 40 mm 9 mm
