MarCal 16 EWR-V
Art. no. 4118807

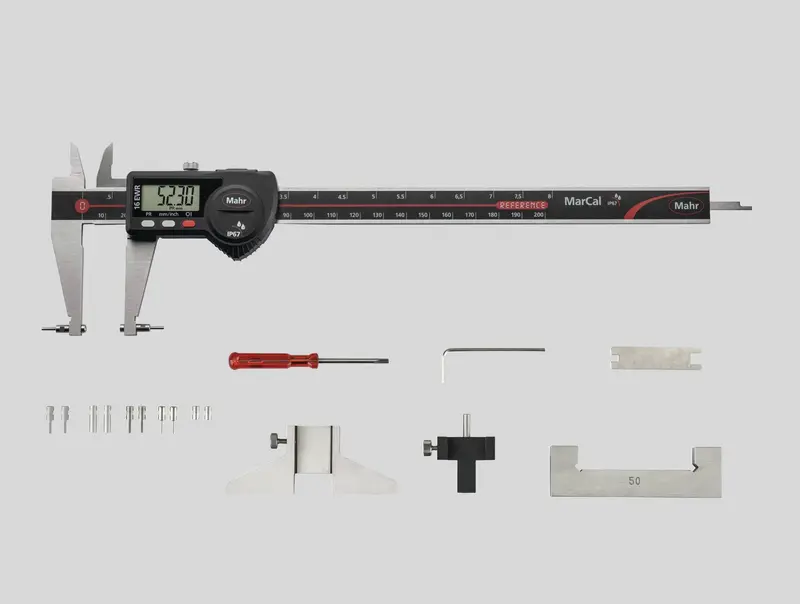

Digital universal caliper MarCal 16 EWR-V
Measuring range mm: 0 - 200 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Depth rod: rectangular
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: setting gage for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1-3, anvils for inside measurement 16Eei 1-3, 4118808 without measuring anvils, adjustment bridge and measuring force equipment, battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide

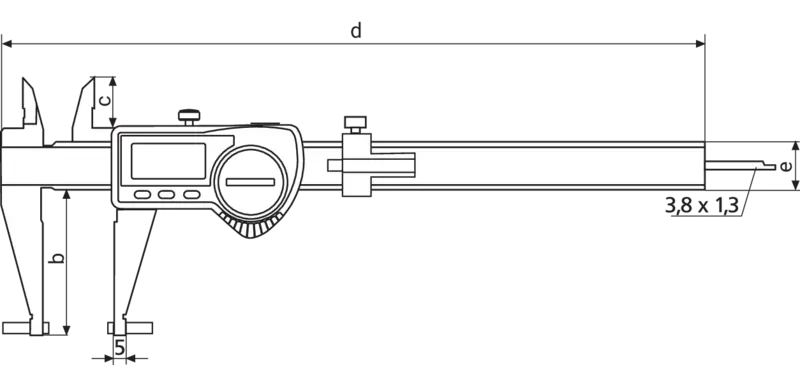

| MarCal 16 EWR-V | Art. no. 4118807 | |
|---|---|
| Measuring range mm | 0 - 200 mm |
| Measuring range inch | 0 - 8" |
| Resolution mm/inch | 0.01 / .0005" |
| Error limit (mm) | 0.03 mm |
| Error limit inches | .001" |
| Standard | Factory standard |
| Battery type | CR 2032 (3V Lithium) |
| Depth rod | rectangular |
| Dimensions | b 48 mm | c 16.5 mm | d 285 mm | e 16 mm | |
|
|
Variety of applications for our products
- Can be used as a standard caliper (four types of measurements) with standard accessories to measure recesses, grooves, etc.
- Can be used with additional accessories to measure threads, bores and serration
| Label | Art. no. | Product type | For measuring instrument | Data interface | Hardware interfaces | Cable length | |
|---|---|---|---|---|---|---|---|
|
Data connection cable USB 16 EXu |
4102357 | 16 EXu |
MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN Digimar 814 SR Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi MarSurf PS1, PS10, M300, M300C, PocketSurf IV |
USB | USB , Simplex , EX-Interface | 2 m |
|
Interface adapter with data cable Digimatic 16 EWd |
4102915 | 16 EWd |
MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN Digimar 814 SR Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi MarSurf PS1, M300, M300C |
Digimatic | 2 m | |
|
Data connection cable RS232C 16 EXr |
4102410 | 16 EXr |
MarCal 16 ER, 16 EWR, 18 EWR, 30 EWR, 30 EWN Digimar 814 SR Micromar 40 ER, 40 EWR (≤ 2017), 40 EWV, 40 EWS, 44 EWR, 46 EWR MarCator 1075 R, 1086 R, 1086 Ri, 1087 R, 1087 Ri, 1087 BR, 1087 BRi MarSurf PS1, PS10, M300, M300C, PocketSurf IV |
Opto RS-232C | Opto RS-232C , Simplex , EX-Interface | 2 m |
