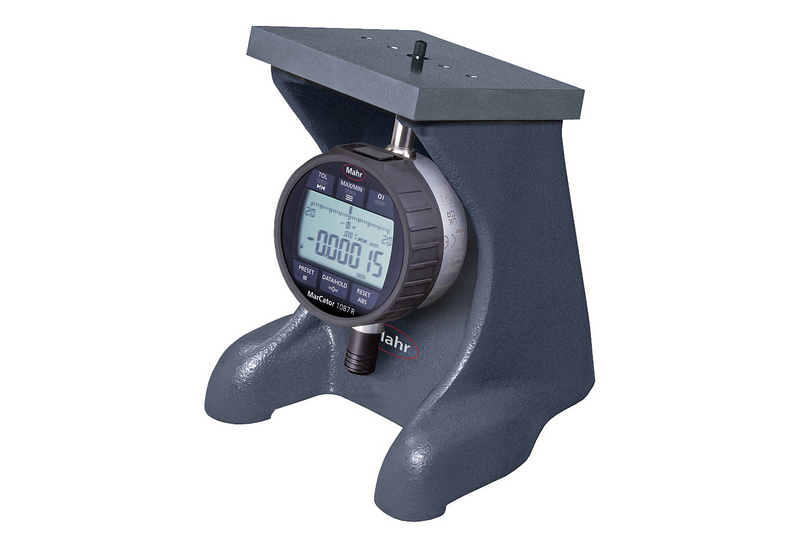

Marameter 75B
Art. no. 2057552
| Product type | 75B |
| Measuring range mm | 0 - 25 |
| Measuring range | 0 - 1" |
| Length of beam | 102 mm |
| Beam width | 89 mm |
| Measuring depth mm | 50 mm |
Variety of applications for our products
- Depth measurement inspection of bore ground or edges on small to medium parts
