MarVision | CNC Workshop measuring microscope

MarVision MM 500 CNC

Nr art. 4248422

MarVision MM 500 CNC

Ideal for fast measurement

The MarVision MM 500 inspects, for example, turned, milled, punched and bent parts, plastic parts or electronic circuit boards. The measuring microscope uses automatic edge detection to determine geometric elements such as points, straight lines, circles, distances, angles or intersections on these workpieces without contact. Thanks to the optical incremental measuring system, it offers outstanding accuracy and reliability. In addition, its color camera captures particularly high-contrast images.

Features
  • Integrated color camera
  • Motorized zoom lens (0.7x - 4.5x) with coaxial illumination
  • LED ring light: 1 ring and 4 segments each individually switchable and dimmable
  • LED transmitted light: Dimmable
  • Pointer for position finding
  • Massive base made of hard granite
  • Stable steel cross table, precision-mounted
  • Quick and fine adjustment of the axes
  • Excellent accuracy and reliability thanks to optical incremental scale
Operating and display unit M3-software with touchscreen PC
  • 23" touchscreen with keyboard and mouse
  • Opperating system Windows
  • Operation via Multi-Touch screen or with mouse / keyboard

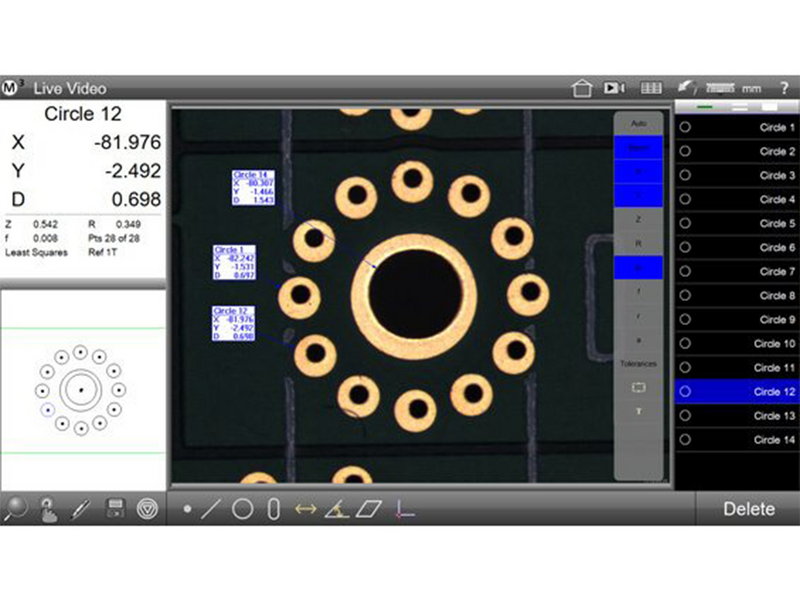

  • M3-Software
  • Large video image
  • Reference / actual evaluation with tolerances
  • Record output with company logo
  • Graphic display with dimensioning
  • Statistics
Maks. wysokość mierzonego przedmiotu 200 mm
Zasilanie 230 V/115 V; 50/60 Hz
Wersja systemu pomiarowego eingebauter Inkrementalmaßstab
Zakres pomiarowy X/Y w mm 300/200 mm
System pomiarowy – rozdzielczość w mm 0.001
Wymiar w mm 600 x 700 x 800
Układ pomiarowy – E1 X/Y in µm 1.9 + (L/100)
Zakres dostawy Oprogramowanie M3 z komputerem PC z ekranem dotykowym , instrukcja obsługi , Świadectwo kalibracji Mahr
Powiększenie 35 - 225x
Układ pomiarowy - E2 XY in µm 2.9 + (L/100)
Oświetlenie LED back and front illumination, adjustable
Rozmiar stołu w mm 480 x 380 mm
Obciążenie stołu (maks.) [kg] 20
Wersja systemu pomiarowego eingebauter Inkrementalmaßstab
Zakres pomiarowy X/Y w mm 300/200 mm
Układ pomiarowy – E1 X/Y in µm 1.9 + (L/100)
Powiększenie 35 - 225x
Układ pomiarowy - E2 XY in µm 2.9 + (L/100)
Oświetlenie LED back and front illumination, adjustable
Measuring system - resolution in mm 0.001 mm
Rozmiar stołu w mm 480 x 380 mm
Obciążenie stołu (maks.) [kg] 20

Różnorodne obszary wykorzystania naszego produktu

  • Measurement or determination of geometric elements (point, straight line, circle, distance, intersection point, etc.) by automatic edge detection, e.g. on punched and bent components, plastic components, and circuit boards.
Prawidłowy, powtarzalny pomiar
Your measurement data is recorded reliably and repeatably, ensuring the highest quality.
Szeroki zakres przedmiotów obrabianych
Fast material-independent measurement of any geometries as well as form and position measurement.
Intuicyjna obsługa
Simple user-guided interface with automatic functions for all key measurement parameters, as well as the use of measurement recipes for recurring measurement tasks.
