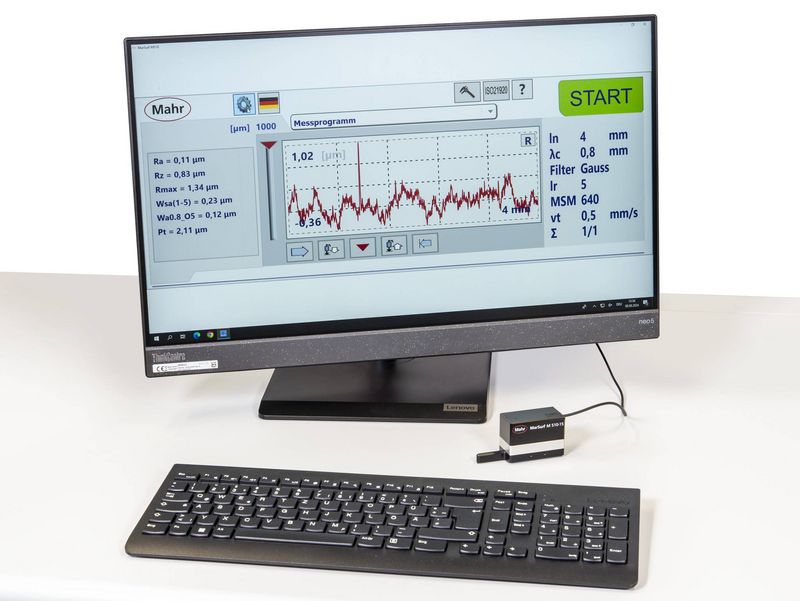

MarSurf M 510 MiniProfiler
Art. no. 6910310
The best of the "mobile" devices
Surface evaluations using skidless tracing are needed not only in the measuring room but more and more in the production area.
- Kleinstes Freitastsystem am Markt
- Handlich und bequem dank geringer Größe und Gewicht
- 3 verschiedene Varianten in den Messlängen 15 mm, 50 mm und 75 mm
- Vibrationsresistent - in Produktion und Bearbeitungsmaschinen einsetzbar
- Einziges Gerät für die Blechindustrie mit Freitastsystem nach SEP 1941 (Messung der Welligkeitskennwertes WSA(1-5) an kaltgewalzten Flacherzeugnissen)
- Motorische Tastnadelabhebung/-absenkung - Die Tastnadel ist das einzige Verschleißteil und befindet sich immer geschützt im Gehäuse.
- Leicht zu bedienende Software
- Einfache Installation und Einrichtung durch den Kunden
- Normgerechtes Ermitteln von Rauheitsparametern und Anwenden der Filter
- Mobiles und bequemes Prüfen von P-, R- und W-Kenngrößen mit nur einem Gerät
- Messen nach neuer Norm DIN EN ISO 21920-2 : 2021
- Messstrecken bis 75 mm für Welligkeit und große Rauheiten
| MarSurf M 510 MiniProfiler | № детали 6910310 | |
|---|---|
| Конец длины трассирования (по оси X) | 15 mm |
| Длина трассирования (Lt) | till 15 mm |
| Принцип измерения | Tactile skidless probe system |
| Измерительное усилие (Н) | 0,00075 N |
| Probe tip radius | 2 µm |
| Фильтр в соответствии с ISO/JIS | EN DIN ISO 4287, EN DIN ISO 13565, Part 1 and 2, DIN EN ISO 21920-2: 2021, EN DIN ISO 16610-21 (Gaussian filter), EN DIN ISO 13565 Part 1 (specific filter), EN DIN ISO 16610-31 (robust Gaussian filter) |
| Отсечка шага Ic в соответствии с ISO/JIS | 0,08 mm , 0,25 мм , 0,8 мм , 2,5 мм , 8,0 mm , переменное |
| Число n базовых длин в соответствии с ISO/JIS | 5 |
| Скорость измерения | 0.1 mm/s to 2 mm/s |
| positioning speed X-axis max. | 2 mm/s |
| Скорость позиционирования (мм/с), ось X | till 2 mm/s |
| Параметры поверхности | Rt, Ra, Rq, Rz, Rp, Rv, Rsk, Rku, Rsm, Rc, Rpc, Rdq, Rmax, Rlq, Rda, Rla, Pt, Rk, Mr1, Mr2, Rpk, Rvk, Rpkx, Rvkx, a1, a2, Wt, Wa, Wca, Wq, Wz, Wp, Wv, Wsk, Wku, Wdq, Wmax, Wlq, Wda, Wla, Rmr30, Rmr60, Rmr90, sSt(g), sSt(f), Wsa(1-5), Wa0.8_O5, Wa0.8_O6, Wa0.8_O7, Wa0.8_O8, Wa0.8_O9, Rpq, Rmq, Rvq, Pmr60 |
| Интерфейс передачи данных | USB A , 4x USB 3.1 Gen. 2 , Порт для подключения дисплея , HDMI , wireless |
| Щуп | induktives Freitastsystem |
| Диапазон температур эксплуатации | 5 - 35°C |
| Вес | 0.2 KG |
| Масса блока привода | 150 g |
| Габариты (Д x Ш x В) блока привода в мм | 52 x 28 x 40 |
| Прочее | other standards: Daimler MBN 31007, SEP 1941 |
| Наконечник щупа | 2 µm |
| Диапазон измерения в мм | 1 mm |
Variety of applications for our products
Bearings, shafts, racks, valves, various components from the engineering and precision mechanics industries
Automotive
Steering, brake systems, transmissions, crankshafts, camshafts, cylinder heads, cylinder blocks, turbochargers
Medical
Roughness measurement on hip and knee endoprostheses
Aerospace
Turbine components
Optics
Diverse optical components
| Label | Art. no. | Диапазон точной регулировки в мм | Поверочная призма для диаметров вала | Усилие отрыва призмы | Крепежное отверстие | Высота колонки | Вылет измерительной головки (макс.) | Вес изделия | Вес | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Измерительный штатив с магнитным основанием 815 MA |
4416000 | 2 mm | 20 - 100 | 450 N | 8H7 | 285 mm | 230 mm | 2.5 kg | |
|
Измерительная стойка (300 мм) с чугунным основанием ST-D |
6710803 | 7.95 KG | |||||||
|
Измерительная стойка (300 мм) с гранитной плитой ST-F |
6710806 | 28 KG | |||||||
|
Измерительная стойка (300 мм) с гранитной плитой и Т-образным пазом ST-G |
6710807 | 45 KG | |||||||
|
Установочная призма PP |
6710401 | 2.01 KG | |||||||
|
Координатный стол CT 120 |
6710529 | 2.76 KG | |||||||
|
Параллельные тиски PPS |
6710604 | 2.98 KG |
