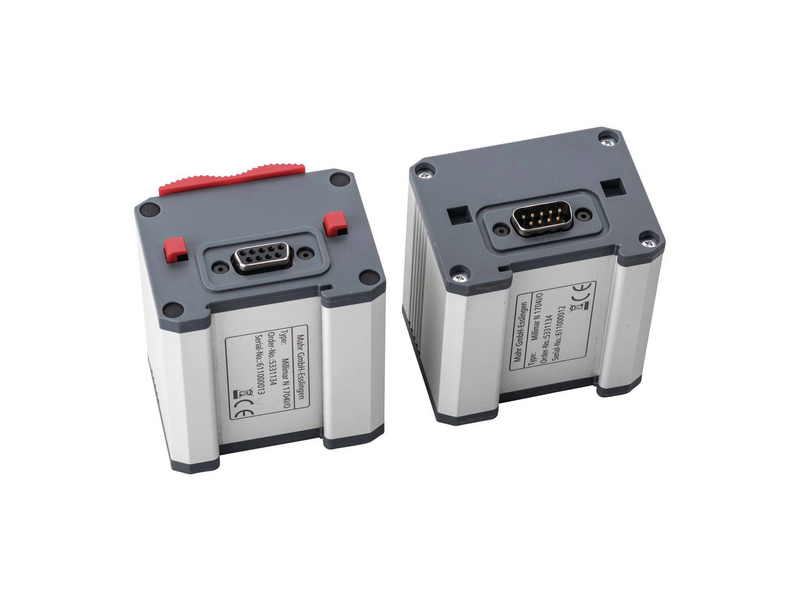

Millimar N 1702 VPP
Art. no. 5331161
- Flexibly configurable RS485 bus modules
- Powerful connection module to evaluate measuring sensors (incremental 1Vss)
The same as length measuring probes or encoders - Reference point evaluation
- Synchronous data retrieval from multiple connected measuring probes
- Can be used as a measuring module on the Millimar C1202 from firmware v.:1.1.0.0
- Connection of N 1700 modules via USB port to the smart, universal evaluation and configuration software Millimar Cockpit from Version 14
- Connects all compatible measuring probe types using one module
- Flexible and modular product combinations to tackle customer-specific measuring tasks
- Maximum theoretical bus data rate of 4189 values/s (depending on the number of connected channels)
| Millimar N 1702 VPP | № детали 5331161 | |
|---|---|
| Тип продукции | N 1702 VPP |
| Потребляемый ток | 350 mA |
| Дискретность отсчета в мкм | 0,01 , 0,1 |
| Входы для подключения щупов | 2 |
| Совместимость | Инкрементный 1 Vss |
| Конфигурация | Millimar C 1202 as of FW version 1.1.0.0 |
| Скорость передачи данных | 4189 Hz |
| Интерфейс передачи данных | RS-485 |
| Электропитание | + 5 В от шины N 1700 |
| Категория защиты IP | IP 42 |
| Минимальная рабочая температура | 10 °C |
| Максимальная рабочая температура | 30 °C |
| Минимальная температура эксплуатации | 0 °C |
| Максимальная температура эксплуатации | 40 °C |
| Вес изделия | 0.2 kg |
