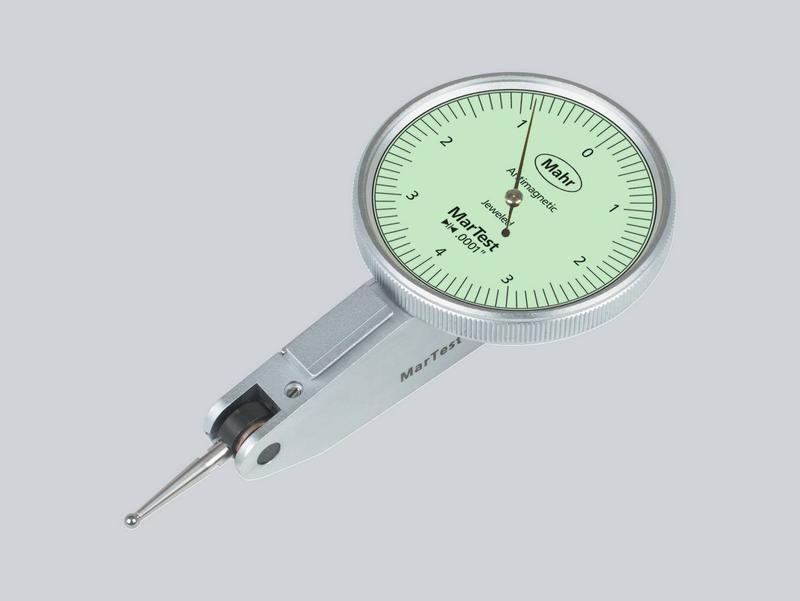

MarTest 801 SGM
Art. no. 4308970
- High contrast dial face, sealed with an O-Ring
- Mineral glass viewing panel for best protection:
- against scratching or damage caused by hot shavings
- optimal resistance to solvents - Matt chrome-plated protective casing with three integrated dovetail guide rails
- Shockproof measuring mechanism
- Anti-magnetic model
- Automatic adjustment to the contacting direction ensuring infallible readings
- Ball-bearing mounted double lever
- Overload protection thanks to friction clutch
| Тип продукции | 801 SGM |
| Диапазон измерения в дюймах | ± 0,004" |
| Поворот стрелки (дюймы) | 0,008" |
| Интервал погрешности fe (дюймы) | 0,00012" |
| Полный интервал погрешности fges (дюймы) | 0,00016" |
| Локальный интервал погрешности ft (дюймы) | 0,00008" |
| Вариация показаний fu (дюймы) | 0,00008" |
| Повторяемость fw (дюймы) | 0,0001" |
| Измерительное усилие | 0.15 N |
| Тип циферблата | 4-0-4 |
| Цвет циферблата | Зеленый |
| Диаметр шкалы (дюймы) | 1,5" |
| Габариты | a 40.5 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm |
|
|
Variety of applications for our products
- Определение отклонений концентричности, плоскостности, параллельности и биения
- Центрирование отверстий и валов
- Параллельное или перпендикулярное выравнивание деталей
MarTest 801 SM
Рычажно-зубчатый индикатор MarTest 801 SM Стандарт предприятия Диапазон измерения: ± 0,004" Цена ...
MarTest 801 SRM
Рычажно-зубчатый индикатор MarTest 801 SRM Стандарт предприятия Диапазон измерения: ± 0,008" Цена...
MarTest 801 SGE
Рычажно-зубчатый индикатор MarTest 801 SGE Стандарт предприятия Диапазон измерения: ± 0,004" Цена...
MarTest 801 SGM
Рычажно-зубчатый индикатор MarTest 801 SGM Стандарт предприятия Диапазон измерения: ± 0,004" Цена...
