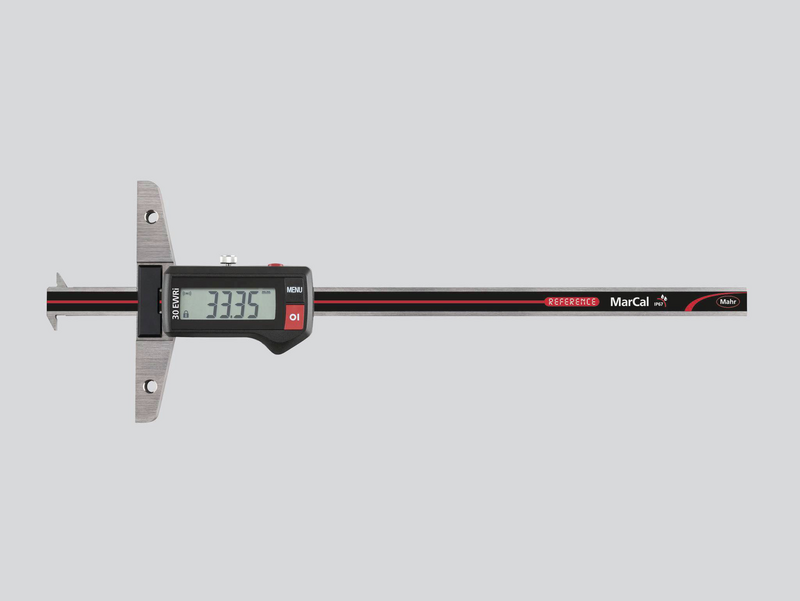

MarCal 30 EWRi-D
Art. no. 4126536
- Контрастный аналоговый дисплей
- Винтовой зажим сверху
- Притертая направляющая
- Измерительная рамка и штанга изготовлены из закаленной коррозионно-стойкой стали
- Измерительная рамка и штанга изготовлены из закаленной коррозионно-стойкой стали
- Мгновенное получение результатов измерений благодаря системе Reference
- Направляющая приподнята для защиты шкалы от износа.
- Превосходная защищенность от пыли и СОЖ
- Приспособления для снятия загрязнений встроены в рамку
| MarCal 30 EWRi-D | № детали 4126536 | |
|---|---|
| Диапазон измерения в мм | 0 - 300 mm |
| Диапазон измерения в дюймах | 0–12" |
| Дискретность отсчета мм/дюймы | 0.01 / .0005" |
| Предел допускаемой погрешности (мм) | 0.04 mm |
| Предел допускаемой погрешности в дюймах | .001" |
| Стандарт | ISO 13385-2 |
| Тип батареи | CR 2032 (3 В, литиевая) |
| Габариты | a 391 mm | b 150 mm | c 12 mm | |
|
|
Variety of applications for our products
| Label | Art. no. | |
|---|---|---|
|
Приемник для приборов со встроенным беспроводным передатчиком Integrated Wireless i-Stick |
4102220 |
