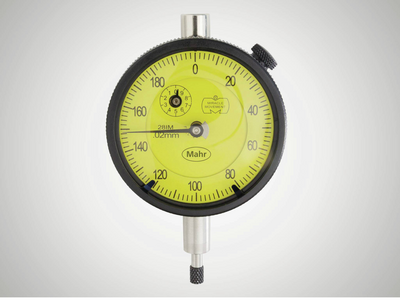

MarCator 28IM
Art. no. 2015795
| MarCator 28IM | № детали 2015795 | |
|---|---|
| Тип продукции | 28IM |
| Диапазон измерений в мм | 5 mm |
| Диапазон за оборот в мм | 2 mm |
| Цена деления в мм | 0.02 |
| Предел допускаемой погрешности на диапазоне измерений в мкм | 40 µm |
| Тип циферблата | 0-100-0 |
| Цвет циферблата | Желтый |
| Диаметр шкалы | 57.15 mm |
|
|
MarCator P1/2I
Индикатор часового типа MarCator P1/2I ANSI Диапазон измерений в мм: 0.25mm Цена деления_в_мм: 0....
MarCator P1/2I-RC
Индикатор часового типа MarCator P1/2I-RC ANSI Диапазон измерений в мм: 0.25mm Цена деления_в_мм:...
MarCator 23IM-RC
Индикатор часового типа MarCator 23IM-RC ANSI Диапазон измерений в мм: 1.25mm Цена деления_в_мм: ...
MarCator 26IM-RC
Индикатор часового типа MarCator 26IM-RC ANSI Диапазон измерений в мм: 2.5mm Цена деления_в_мм: 0...
MarCator 26I
Индикатор часового типа MarCator 26I ANSI Диапазон измерений в мм: 2.5mm Цена деления_в_мм: 0.01 ...
MarCator P1I-RC
Индикатор часового типа MarCator P1I-RC ANSI Диапазон измерений в мм: 0.5mm Цена деления_в_мм: 0....
MarCator 23I
Индикатор часового типа MarCator 23I ANSI Диапазон измерений в мм: 1.25mm Цена деления_в_мм: 0.00...
