MarSurf |
移動式表面測定機

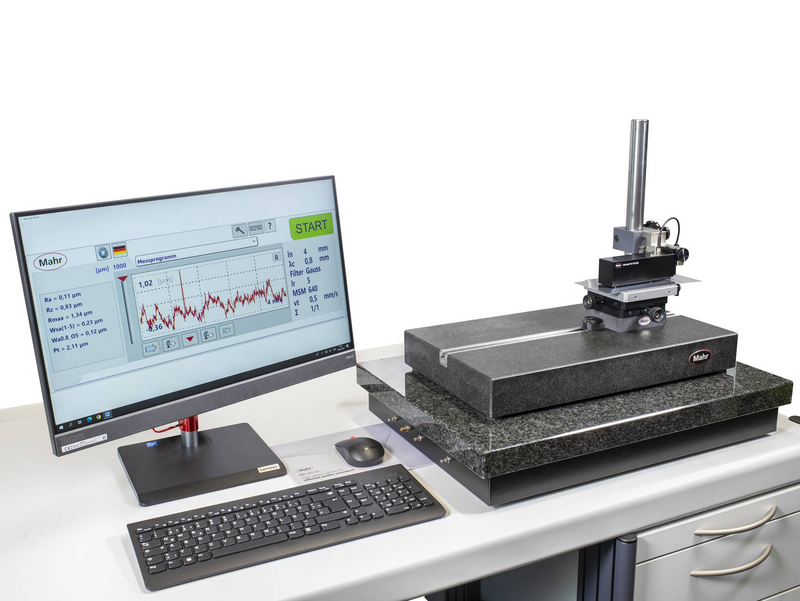

MarSurf M 510 MiniProfiler
Art. no. 6910310
「モバイル」機器の最高傑作
スキッドレストレースを使用した表面評価は、測定室だけでなく、生産現場でも必要性が益々高まっています。
Compact design
- Smallest free probe system on the market
- Handy and convenient thanks to its small size and weight
- 3 different versions in measuring lengths of 15 mm, 50 mm and 75 mm
- Vibration-resistant - can be used in production and processing machines

Unique
- Unique device for the sheet metal industry with free scanning system in accordance with SEP 1941 (measurement of the waviness characteristic value WSA(1-5) on cold-rolled flat products)
- Motorized probe pin lifting/lowering – The probe pin is the only wearing part and is always protected in the housing.
- Easy-to-use software
- Easy installation and set-up by the customer

Standard-compliant measurement
- Standard-compliant determination of roughness parameters and application of filters
- Mobile and convenient testing of P, R and W parameters with just one device
- Measurement in accordance with new standard DIN EN ISO 21920-2 : 2021
- Measuring distances up to 75 mm for waviness and large roughness

MarSurf M 510 MiniProfiler | Art. no. 6910310 | |
---|---|
ラバース長のエンド (X) | 15 mm |
トラバース長 (Lt) | till 15 mm |
Measuring principle | tactile stylus method , tactile skidless probe |
測定力 [N] | 0.00075 N |
Probe tip radius | 2 µm |
ISO/JIS に準拠したフィルタ | DIN EN ISO 16610-21 (Gaussian filter), DIN EN ISO 13565 Part 1 (specific filters), DIN EN ISO 16610-31 (robust Gaussian filter) |
ISO/JIS 適合のカットオフIC | 0,08 mm , 0.25 mm , 0.8 mm , 2.5 mm , 8,0 mm , 可変 |
ISO/JIS に準拠したサンプリング長の数 n | 5 |
測定速度 | 0.1 mm/s 終点 2 mm/s |
位置決め速度 (mm/s)、X軸 | till 2 mm/s |
表面パラメータ |
Over 75 characteristic values for R-, P-, W-profile |
データインタフェース | USB A , 4x USB 3.1 Gen. 2 , ディスプレイポート , HDMI , wireless |
プローブ | inductive skiddless probe system |
動作温度 | 5 °C 終点 35 °C |
重量駆動ユニット | 150 g |
駆動ユニットの寸法 (長さ x 幅 x 高さ) mm。 | 52 x 28 x 40 |
その他 | other standards: Daimler MBN 31007, SEP 1941 |
スタイラス | 2 µm |
測定範囲 | 1 mm |
当社製品のさまざまな用途
Mechanical engineering
Bearings, shafts, racks, valves, various components from the engineering and precision mechanics industries
Automotive
Steering, brake systems, transmissions, crankshafts, camshafts, cylinder heads, cylinder blocks, turbochargers
Medical
Roughness measurement on hip and knee endoprostheses
Aerospace
Turbine components
Optics
Diverse optical components
Bearings, shafts, racks, valves, various components from the engineering and precision mechanics industries
Automotive
Steering, brake systems, transmissions, crankshafts, camshafts, cylinder heads, cylinder blocks, turbochargers
Medical
Roughness measurement on hip and knee endoprostheses
Aerospace
Turbine components
Optics
Diverse optical components
Label | Art. no. | 微調整範囲 (mm) | 軸径用Vブロック | 接着力プリズム | 取付穴 | 合計高さ | 突出し(最大) | 製品重量 | |
---|---|---|---|---|---|---|---|---|---|
![]() |
磁気ベース付き測定用三脚 815 MA |
4416000 | 2 mm | 20 - 100 | 450 N | 8H7 | 285 mm | 230 mm | 2.5 kg |
![]() |
測定スタンド 300、鋳鉄ベース付き ST-D |
6710803 | |||||||
![]() |
測定スタンド 300、花こう岩ベース付き ST-F |
6710806 | |||||||
![]() |
測定スタンド 300、花こう岩ベースとTスロット付き ST-G |
6710807 | |||||||
![]() |
V-ブロック PP |
6710401 | |||||||
![]() |
XY 表 CT 120 |
6710529 | |||||||
![]() |
平行万力 PPS |
6710604 |
