Digimar 814 C-G
Art. no. 4426582
Height measuring and scribing instrument Digimar 814 C-G
Measuring range mm: 0 - 300 mm
Resolution: 0.001 mm, 0.01 mm
Resolution: 0.00005 inch, 0.0005 inch
Error limit µm: 15 µm
Data interface: USB
Package contains: height measuring instrument incl. operating and display unit, battery, instruction manual, test certificate
| Digimar 814 C-G | Art. no. 4426582 | |
|---|---|
| Measuring range mm | 0 - 300 mm |
| Measuring range | 0 - 12" |
| Resolution | 0.001 mm , 0.01 mm |
| Resolution | 0.00005 inch , 0.0005 inch |
| Error limit µm | 15 µm |
| Error limit | 15 |
| Error limit inches | .0006" |
| Error limit inches | 0.0006 inch |
| Repeatability planes | 10 µm |
| Data interface | USB |
| Product weight | 13.4 kg |

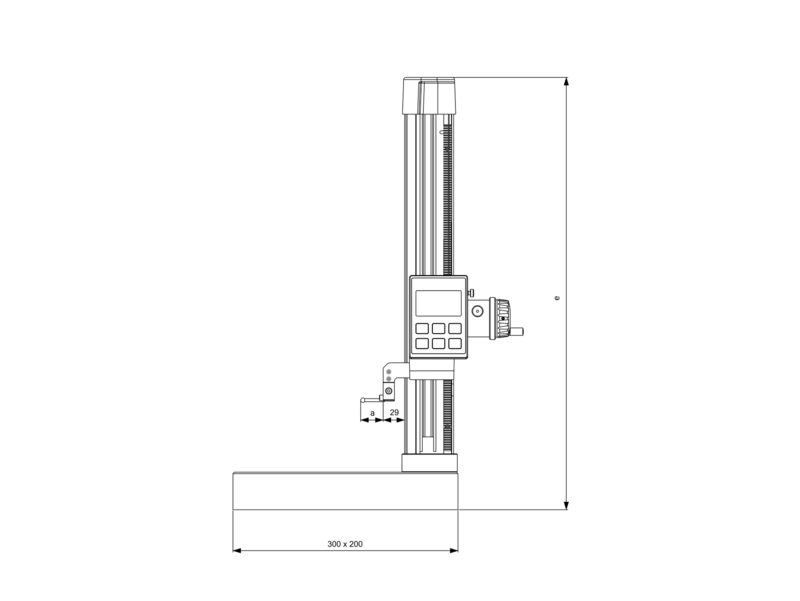

| Dimensions | a 30 mm | |
|
|
Digimar 814 C-G
Art. no. 4426582
Height measuring and scribing instrument Digimar 814 C-G
Measuring range mm: 0 - 300 mm
Resolution: 0.001 mm, 0.01 mm
Resolution: 0.00005 inch, 0.0005 inch
Error limit µm: 15 µm
Data interface: USB
Package contains: height measuring instrument incl. operating and display unit, battery, instruction manual, test certificate
| Digimar 814 C-G | Art. no. 4426582 | |
|---|---|
| Measuring range mm | 0 - 300 mm |
| Measuring range | 0 - 12" |
| Resolution | 0.001 mm , 0.01 mm |
| Resolution | 0.00005 inch , 0.0005 inch |
| Error limit µm | 15 µm |
| Error limit | 15 |
| Error limit inches | .0006" |
| Error limit inches | 0.0006 inch |
| Repeatability planes | 10 µm |
| Data interface | USB |
| Product weight | 13.4 kg |
| Dimensions | a 30 mm | |
|
|
|
