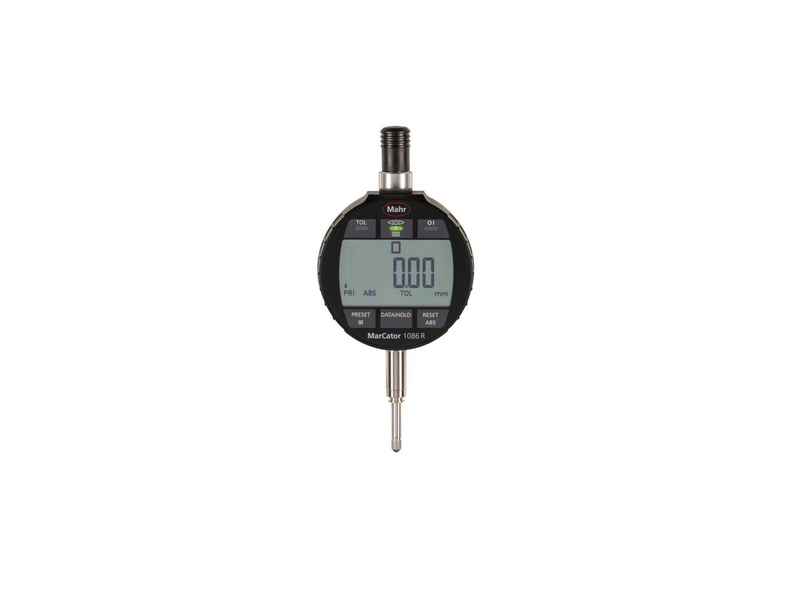

MarCator 1086 R
Art. no. 4337780
Digital indicator MarCator 1086 R
IP protection category: IP 42
Data interface: USB, Digimatic
Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.01
Resolution inches: .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
| Product type | 1086 R |
| Measuring span in mm | 12.5 mm |
| Measuring span (inches) | .5" |
| Resolution | 0.01 mm |
| Error limit (mm) | 0.02 mm |
| Repeatability mm | 0.01 mm |
| Measuring force (N) | 0.65 - 0.9 |
| Height of digits | 11.5 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 126.2 mm | b 23.3 mm | c 13.6 mm | |
|
|
Variety of applications for our products
| Label | Art. no. | |
|---|---|---|
|
Data cable USB bidirectional DK-U1 |
4102603 |
|
Data cable Digimatic DK-D1 |
4102606 |
|
Shock Protection Ring 1086 sr |
4346606 |
