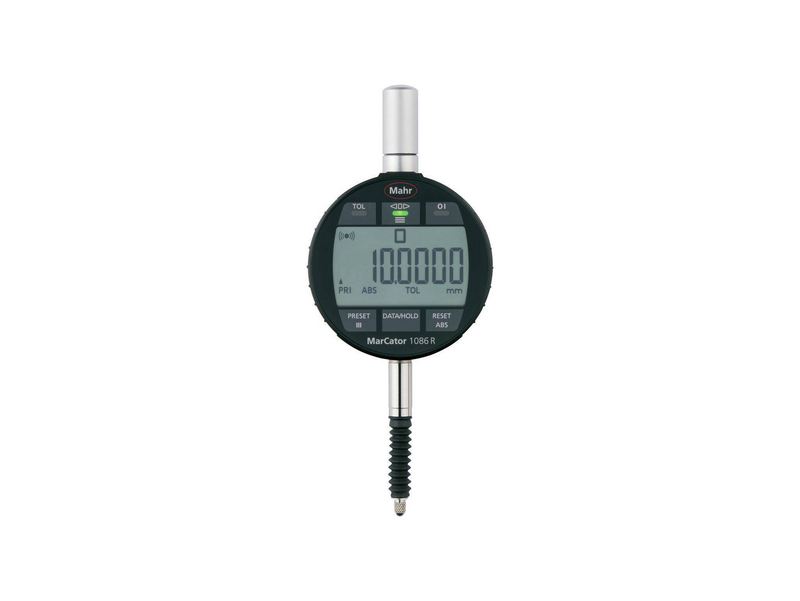

MarCator 1086 WRi
Art. no. 4337750
Digital indicator MarCator 1086 WRi
IP protection category: IP 64
Data interface: Integrated Wireless, USB, Digimatic
Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
| Product type | 1086 WRi |
| Measuring span in mm | 12.5 mm |
| Measuring span (inches) | .5" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 0.65 - 1.4 |
| Height of digits | 11.5 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 144.2 mm | b 21.3 mm | c 28.1 mm | |
|
|
Variety of applications for our products
Ideal for use in particularly challenging environments where the dial gage is highly contaminated or exposed to splash water
Comprehensive measuring functions for Static measurements such as lengths, distances and length differences
| Label | Art. no. | |
|---|---|---|
|
Wireless receiver for measuring instruments with integrated wireless i-Stick |
4102220 |
|
Data cable USB bidirectional DK-U1 |
4102603 |
|
Data cable Digimatic DK-D1 |
4102606 |
|
Shock Protection Ring 1086 sr |
4346606 |
MarCator 1086 WRi
Digital indicator MarCator 1086 WRi IP protection category: IP 64 Data interface: Integrated Wire...
MarCator 1086 WR
Digital indicator MarCator 1086 WR IP protection category: IP 64 Data interface: USB, Digimatic ...
MarCator 1086 WR
Digital indicator MarCator 1086 WR IP protection category: IP 64 Data interface: USB, Digimatic ...
MarCator 1086 WRi
Art. no. 4337750
Digital indicator MarCator 1086 WRi
IP protection category: IP 64
Data interface: Integrated Wireless, USB, Digimatic
Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
| Product type | 1086 WRi |
| Measuring span in mm | 12.5 mm |
| Measuring span (inches) | .5" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 0.65 - 1.4 |
| Height of digits | 11.5 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 144.2 mm | b 21.3 mm | c 28.1 mm | |
|
|
|
Variety of applications for our products
Ideal for use in particularly challenging environments where the dial gage is highly contaminated or exposed to splash water
Comprehensive measuring functions for Static measurements such as lengths, distances and length differences
| Label | Art. no. | |
|---|---|---|
|
|
Wireless receiver for measuring instruments with integrated wireless i-Stick |
4102220 |
|
|
Data cable USB bidirectional DK-U1 |
4102603 |
|
|
Data cable Digimatic DK-D1 |
4102606 |
|
|
Shock Protection Ring 1086 sr |
4346606 |
MarCator 1086 WRi
Digital indicator MarCator 1086 WRi IP protection category: IP 64 Data interface: Integrated Wire...
MarCator 1086 WR
Digital indicator MarCator 1086 WR IP protection category: IP 64 Data interface: USB, Digimatic ...
MarCator 1086 WR
Digital indicator MarCator 1086 WR IP protection category: IP 64 Data interface: USB, Digimatic ...
