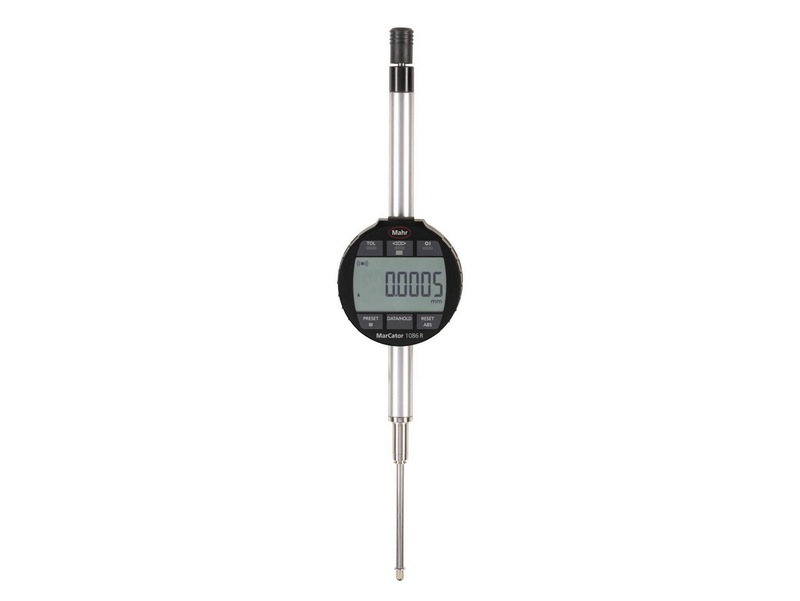

MarCator 1086 Ri
Art. no. 4337722
Digital indicator MarCator 1086 Ri
IP protection category: IP 42
Data interface: USB, Digimatic
Factory standard
Measuring span in mm: 50mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
| Product type | 1086 Ri |
| Measuring span in mm | 50 mm |
| Measuring span (inches) | 2" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.007 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 1.25 - 2.7 |
| Height of digits | 11.5 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 267.7 mm | b 39.8 mm | c 52.5 mm | |
|
|
Variety of applications for our products
| Label | Art. no. | |
|---|---|---|
|
Wireless receiver for measuring instruments with integrated wireless i-Stick |
4102220 |
|
Data cable USB bidirectional DK-U1 |
4102603 |
|
Data cable Digimatic DK-D1 |
4102606 |
|
Shock Protection Ring 1086 sr |
4346606 |
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Art. no. 4337722
Digital indicator MarCator 1086 Ri
IP protection category: IP 42
Data interface: USB, Digimatic
Factory standard
Measuring span in mm: 50mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
| Product type | 1086 Ri |
| Measuring span in mm | 50 mm |
| Measuring span (inches) | 2" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.007 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 1.25 - 2.7 |
| Height of digits | 11.5 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 267.7 mm | b 39.8 mm | c 52.5 mm | |
|
|
|
Variety of applications for our products
| Label | Art. no. | |
|---|---|---|
|
|
Wireless receiver for measuring instruments with integrated wireless i-Stick |
4102220 |
|
|
Data cable USB bidirectional DK-U1 |
4102603 |
|
|
Data cable Digimatic DK-D1 |
4102606 |
|
|
Shock Protection Ring 1086 sr |
4346606 |
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
MarCator 1086 Ri
Digital indicator MarCator 1086 Ri IP protection category: IP 42 Data interface: USB, Digimatic ...
