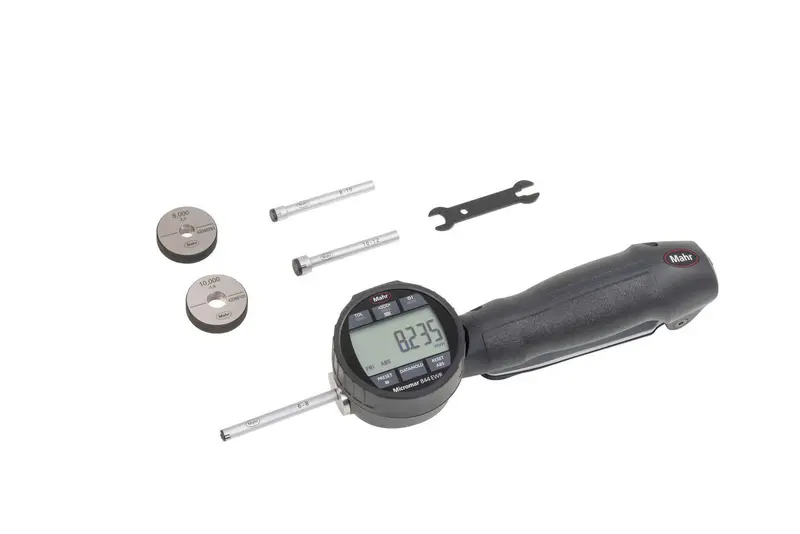

Micromar 844 EWR
Art. no. 4192240
Digital 3-point inside measuring instrument - in Set Micromar 844 EWR
Factory standard
Measuring range mm: 6 - 12mm
Package contains: Basic unit 844 EWR-g, Shock protection ring 1086 sr, measuring head 44 Ak, instruction manual, battery, Hexagonal wrench, case
| Micromar 844 EWR | Art. no. 4192240 | |
|---|---|
| Measuring range mm | 6 - 12 mm |
| Measuring range | .25 - .4725" |
| Resolution mm/inch | 0.001 / .00005" |
| Error limit µm | 4 µm |
| Notes error limit |
|
| Battery type | CR 2450N (3V Lithium) |
|
|
Variety of applications for our products
- through holes
- blind holes
| Label | Art. no. | Measuring range mm | Measuring range | Resolution mm/inch | Battery type | |
|---|---|---|---|---|---|---|
|
Data cable USB bidirectional DK-U1 |
4102603 | ||||
|
Data cable Digimatic DK-D1 |
4102606 | ||||
|
Clamping plate for 44 EWR(i) / 844 EWR(i) 44 EWR-gs |
4190400 | - | |||
|
Inside measuring instrument - Basic unit with lever retraction 844 EWR-g |
4192260 | 6 - 20 mm | .25 - .775" | 0.001 / .00005" | CR 2450N (3V Lithium) |
|
Shock Protection Ring 1086 sr |
4346606 |

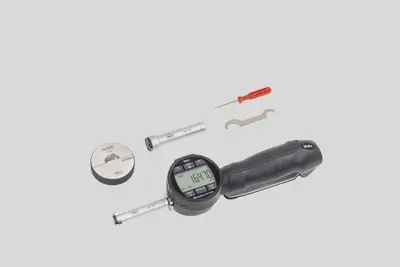

Micromar 844 EWR
Digital 3-point inside measuring instrument - in Set Micromar 844 EWR Factory standard Measuring ra...

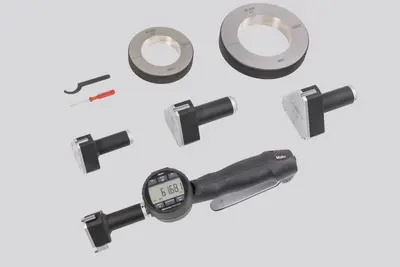

Micromar 844 EWR
Digital 3-point inside measuring instrument - in Set Micromar 844 EWR Factory standard Measuring ra...

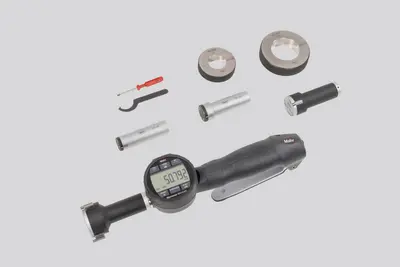

Micromar 844 EWR
Digital 3-point inside measuring instrument - in Set Micromar 844 EWR Factory standard Measuring ra...
